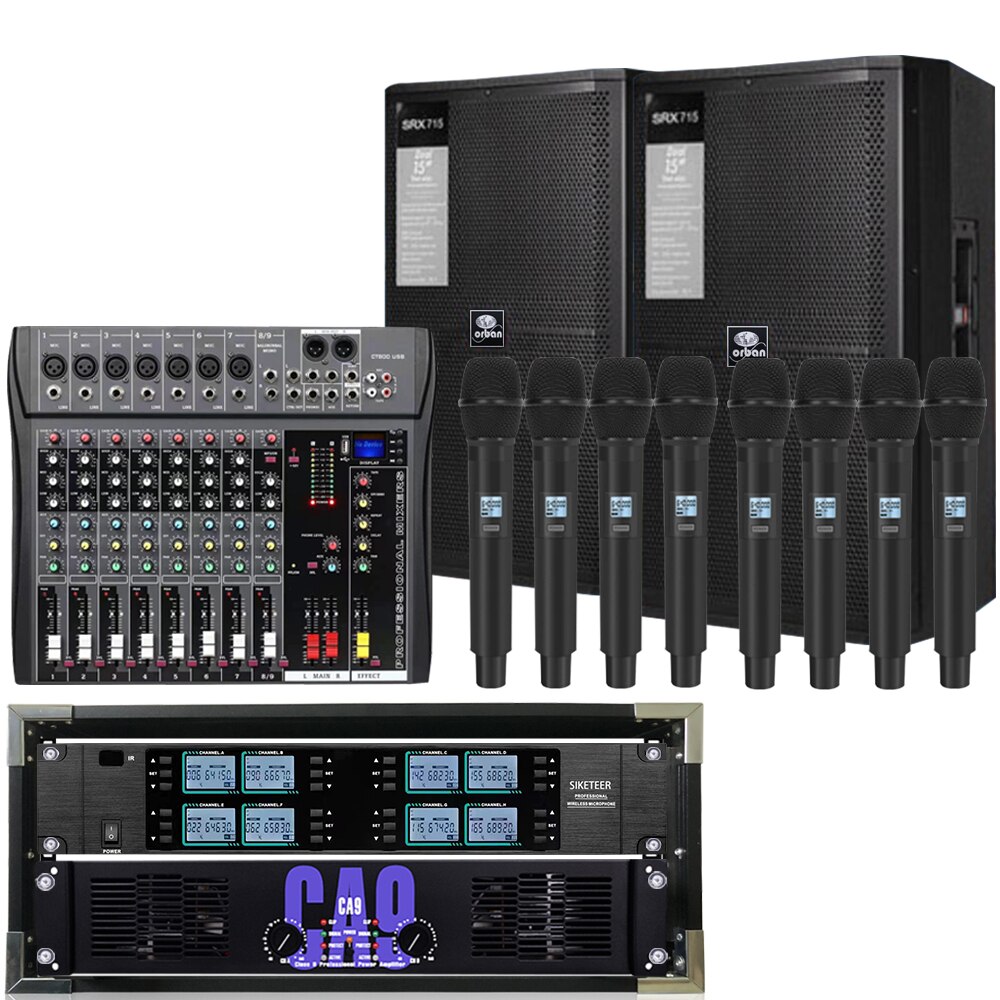

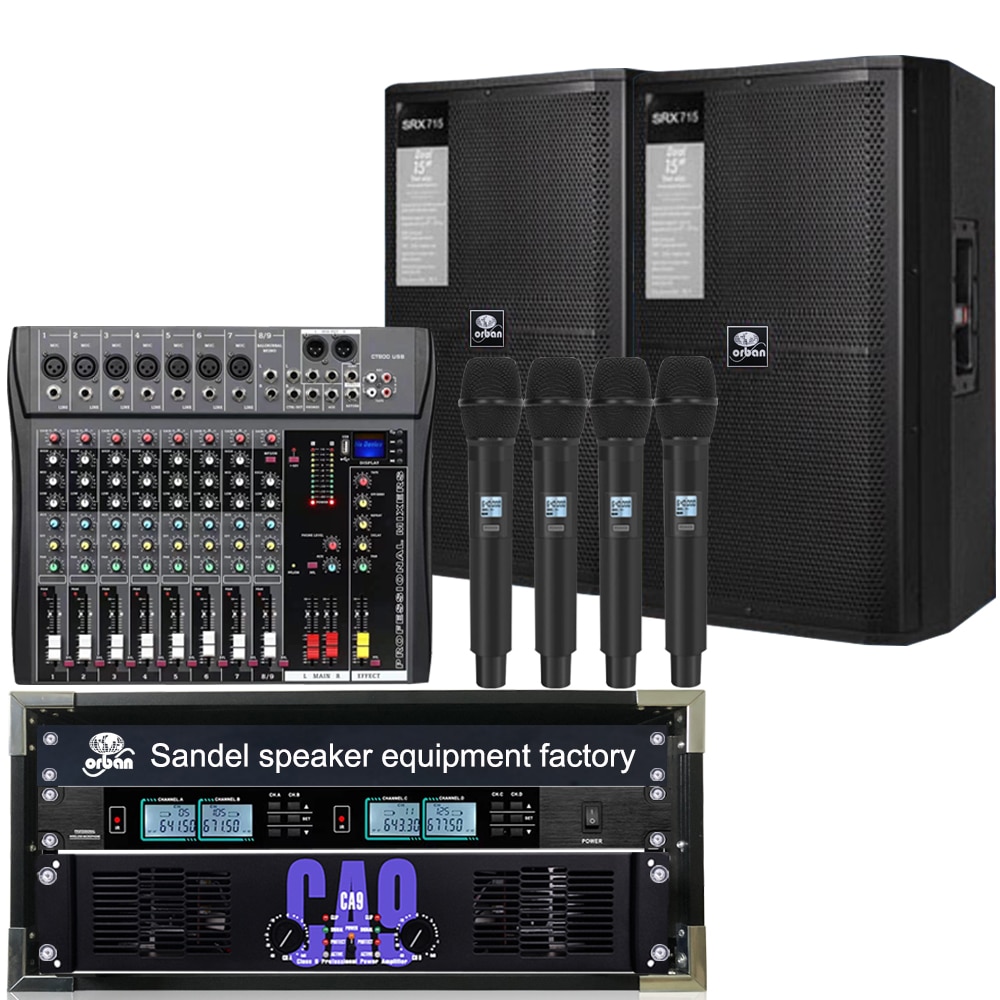

Professional Performance Speaker Set DJ Mixer Power Amplifier Wireless Handheld Microphone System 15-inch Speaker Karaoke Set

Description

Hello friend

Because professional speakers are magnetic, it is difficult to send by air

So we are sending it is the shipping company no set shipping cost

Shipping costs vary from country to country

If you want to know about the product, please contact our customer service

Thank you

Specifications: one for four eight UHF wireless microphones

Accessories: Conference, Handheld, Lavalier, Headset Microphone

Product Note: High cost performance, stable performance

Category: Wireless Conference Microphone Series

technical parameter

Comprehensive performance

Carrier frequency range: 610MHz – 680MHz

920-950MHz (depending on each country range)

Modulation method: FM frequency modulation

Maximum frequency deviation: ± 45 kHz

Frequency Response: 50Hz-15KHz

Signal-to-noise ratio (S/N): >105dB(A)

Distortion: (1kHz): <0.3%

Working temperature: -10~55℃

Working distance: 50-80 meters (under ideal conditions)

recipient

Vibration method: PLL (digital frequency synthesizer)

Error suppression: ≥80dB

Image rejection: ≥80dB

Sensitivity: 5dBuV

Audio output level: Balanced output (XLR output jack): 250 mV / 600 Ω

Unbalanced output (1/4″ output socket): 400 mV / 3 KΩ

Working voltage: DC 13.5-16V

Working current: ≤800mA

remote control

RF output power: 30 mW max (according to applicable national regulations)

Vibration method: PLL (digital frequency synthesizer)

Transmission frequency stability: <30ppm

Dynamic range: ≥100dB (A)

Frequency Response: 50Hz-15KHz

Maximum input sound pressure: 130 dB SPL

Microphone recording: dynamic

Power supply: 2 (1.5V) AA alkaline batteries

Conference Bodypack Transmitter

RF output power: 30 mW max (country dependent)

Vibration method: PLL (digital frequency synthesizer)

Transmission frequency stability: <30ppm

Dynamic range: ≥100dB (A)

Frequency Response: 50Hz-15KHz

Maximum input sound pressure: 130 dB SPL

Microphone Recording: Condenser

Power supply: 2 (1.5V) AA alkaline batteriesKaraoke digital pre-effector

Features

music

1. Music parameter equalization: 7 segments

2. Music to main output high pass filter: 12dB/24dB (0Hz – 303Hz)

microphone

1. There are four microphone FBE modes: OFF 1 2 3

2. With microphone compression function

3. 15-band microphone parametric equalization

Effect

echo:

1. Echo low pass filter: 5.99Hz – 20.6KHz

2. Echo high pass filter: 0Hz – 1000Hz

3. Echo parametric equalization: 3 segments

4. Echo level: 0～

5. Echo direct sound level: 0～

6. Echo pre-delay: 0～500ms

7. Echo right channel pre-delay: 0～±50%, (relative to left channel)

8. Echo total pre-delay: 0～500ms

9. Echo right channel delay: 0~50%, (relative to left channel echo delay time)

10. Echo repetition: 0～90%

reverberation

1. Adjustable range of reverberation low-pass filter: 5.99Hz – 20.6KHz

2. Reverberation high-pass filter adjustable range: 0Hz – 1000Hz

3. Adjustable range of reverberation level: 0～

4. Adjustable range of reverberation direct sound: 0～

5. Adjustable range of echo pre-delay: 0～200ms

6. Adjustable range of reverberation time: 0～3000ms

Main output (working mode: singing/dancing (automatic/manual), including all parameters except pressure limit, delay, mute)

1. Music level: 0～200%

2. Direct sound level: 0～200%

3. Echo level: 0～200%

4. Reverberation level: 0～200%

5. 5-segment music parametric equalization

6. Compression Limiter

7. Left channel delay: 0～50ms

8. Right channel delay: 0～50ms

9. Left channel mute function

10. Right channel mute function

Center output (working mode: singing/dancing (automatic/manual), including all parameters except pressure limit, delay, mute)

1. Music level: 0～200%

2. Direct sound level: 0～200%

3. Echo level: 0～200%

4. Reverberation level: 0～200%

5. High pass filter: 0Hz – 303Hz

6. 3-band parametric equalization

7. Compression Limiter

8. Delay: 0～50ms

9. Mute function

Subwoofer output (working mode: singing/dancing and (automatic/manual), including all parameters except pressure limit, delay, mute)

1. Music level: 0～400%

2. MIC direct sound level: 0～200%

3. High pass filter: 12dB, Q 0.4～1.5,/Bessel 24dB/Butterworth 24dB/Link Riley 24dB/USER 12dB/USER 24dB (0Hz – 303Hz)

4. Low pass filter: 12dB, Q 0.4～1.5,/Bessel 24dB/Butterworth 24dB/Link Riley 24dB/USER 12dB/USER 24dB (0Hz – 303Hz)

5. 3-band parametric equalization

6. Compression Limiter

7. Delay: 0～50ms

8. Mute function

system

1. Two music input ports: 1/2

2. Music input gain: 0dB/3dB/6dB (not adjustable in user mode)

3. Keyboard lock password and system mode switch passwordDigital power amplifier

Power: 650W*2

Distortion: <0.005%

Signal-to-noise ratio: 112dB (A-welghting)

Frequency response: 20 Hz-20kHz+/-0.25dB

Damping coefficient:>1000

Conversion rate: 50V/US

Input Impedance : 30kΩ Balanced

Input Sensitivity: 0775V

DC residual: <5mV

Power factor COS:>0.95@>500W

Working voltage: 110V/220V

Traditional power amplifier

CA9 technical parameters:

8Ω stereo output power: 650W×2

4Ω stereo output power: 1200W×2

8Ω bridged mono output: 1100W

Frequency response: 20Hz-20kHz±0.3dB

Total harmonic distortion: <0.05%@8Ω1KHz

Signal-to-noise ratio: >98dB

Transient response: 35V/uS

Damping coefficient:＞300@ 8Ω

Crosstalk between channels: >100dB@8Ω 1KHz

Input impedance: 20kΩ/10KΩ

Input sensitivity: 0.775V/1.0/1.4

Protections: Peak Limit, Overload, Direct, Short Circuit, Overtemperature, Soft Start

Controls: Front Panel: Power Switch / Channel 1 Channel 2 Fader

Rear Panel: Mode/Sensitivity/Limiter/Ground Switch

Height: 2U

Weight: 21kg

Professional speakers

Model: SRX715

Speaker type Single 15″ full-range speaker

Woofer 190 magnets 75 cores*1

Tweeter 120 magnetic 44 cores * 1

Rated power 600W

Peak power 1200W

Rated impedance 8Ω

Frequency box should be 58Hz-20KHz

Sensitivity 99dB

Covering angle 75`X50`

Wiring method +1/-1, +2/-2

Box size: 439*711*406 (W*D*H)

Applicable venues: business clubs, performing arts bars, clubs, teaching venues, conference rooms, multi-purpose halls, etc.
