Description
- Brand Name: Kcosit
- Display Size: 10.1″
- Feature: OTG
- Tablet Storage Capacity: 16GB
- Processor Model: Others
- Operating System: Linux
- Origin: Mainland China
- Supporting Language: English,Russian,Spanish,Swedish,Portuguese,Turkish,Italian,German,Chinese,French,Japanese,Polish,Ukrainian,Greek,Hebrew
- Extend Port: DC Jack,Earphone Jack,Mini USB,RJ45,USB,Type-C
- Memory Capacity: 2GB
- Network : 4G LTE
- Panel Type: IPS
- Certification: CE
- Display resolution: 1280×800
- Processor Core: Octa Core
- Net Weight: 1.4KG
- Touch Screen Type: Capacitive Screen
- Item Type: Tablet PC
- Google Play: No
- Package: Yes
Standard Version Spec (NO WiFI Bluetooth+NO 4G LTE+No Camera+ NO GPS+No Battery)
- Operation System: Android 9.0
- CPU: Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
- GPU Adreno 506
- Display Resolution : 10″ HD (1280 x 800), Sunlight Readable 1000cd/m²
- RAM+ROM: =2GB RAM+16GB ROM
- RAM+ROM: =4GB RAM+64GB ROM (Optional)
- AC Power Support 9V~36V Input

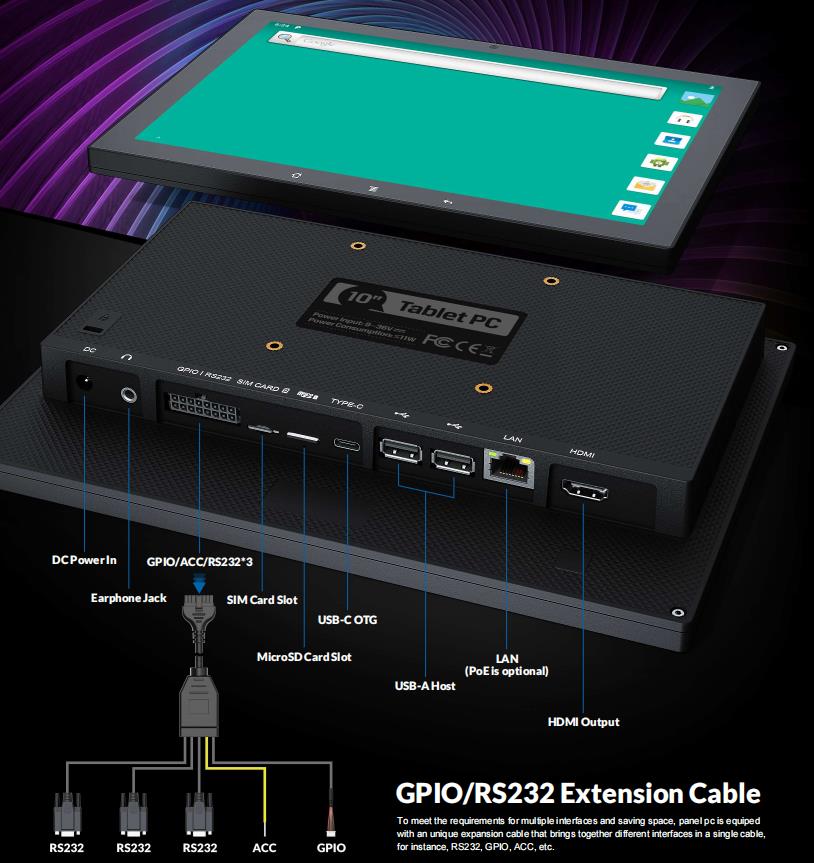

- Standard Interfaces +Extended Cable Interfaces:
- 1X RJ45 LAN 1000M (POE 25W is Optional)
- Com RS232x3
- GPIOx4 ( 2xinput o+2X output)
- HDMI X1 output Support up to 1080P
- SIM Card (4G lte Function optional)
- MicroSD Card x1 Support up to 128GB
- USB Host 2X,USB type-C OTGx1
- Earphone Jack 3.5mm
Optional Functions
- Front Camera 5.0MP (Optional)
- WiFi+ Bluetooth 5.0(Optional)
- GPS GNSS Built-in or External(Optional)
- 4G LTE 3G/4G(Optional)
- POE (Optional)
- NFC (Optional)
Remark :
WiFi.4G.Camera.POE=
Standard Tablets+ WiFi + Bluetooth+ 4G LTE+ Front Camera+POE Functions
Standard Package includes:
1. 1X Tablet Panel PC (Without Battery)
2. 1X 12V AC Charger(US or EU )
3. 1X USB Cable
4. 1X Extention Cable
|
SYSTEM
|
CPU
|
Qualcomm Cortex®-A53 64-bit Octa-core 1.8GHz processor
|
|
OS
|
Android 9.0
|
|
|
RAM + ROM
|
2GB LPDDR3 + 16GB eMMC, 4GB + 64GB are optional
|
|
|
GPU
|
Adreno 506
|
|
|
PANEL
|
Sensors
|
Light Sensor (Auto Dimming)
|
|
LCD
|
10.1″ IPS, 1280×800, 1000 nit, 170°/170° viewing angle
|
|
|
Touch Panel
|
Multi-point capacitive touch screen
|
|
|
INTERFACE
|
LAN
|
100M×1 (PoE is optional, 25W)
|
|
GPIO
|
×4 (Input×2, output×2)
|
|
|
COM
|
RS232×3
|
|
|
HDMI
|
×1 Output, support up to 1080p
|
|
|
SIM
|
×1
|
|
|
Micro SD Card
|
×1, support up to 128GB
|
|
|
USB
|
USB host×2, USB Type-C OTG×1
|
|
|
Earphone Jack
|
3.5mm
|
|
|
WIRELESS
(Optional) |
Wi-Fi
|
802.11a/b/g/n/ac, 2.4GHZ/5GHZ (Optional)
|
|
BT
|
2402MHz~2480MHz (Optional)
|
|
|
Cellular Network
|
3G/4G (LTE, DC-HSPA+, UMTS, EDGE, GPRS, GSM) (Optional)
|
|
|
GNSS
|
(GPS, GLONASS) (Optional)
|
|
|
NFC
|
(Optional)
|
|
|
BUILT-IN
|
Front Camera
|
500MP (Optional)
|
|
Speaker
|
X1
|
|
|
POWER
|
Power Supply
|
DC 9~36V
|
|
Power Consumption
|
≤8W
|
|
|
OTHER
|
Dimension
|
249mm×166mm×32mm
|
|
Weight
|
980g
|
|
|
Environment
|
Operating Temp: -10°C~60°C (14°F~140°F)
|
|
|
Storage Temp: -20°C~65°C (-4°F~149°F)
|
